AM04 21700 - 160 Amp Capable - Racing Performance & Long Life

AM04 21700 - 160 Amp Capable - Racing Performance & Long Life

$5.99 USD
$6.00 USD $5.99 USD
Sale Sold out

20+ Cells = Free Shipping

130+ Cells = $5.75 ea

Fast-charging capabilities, robust thermal management, and unparalleled endurance set the AM04 apart as the best choice for many applications.

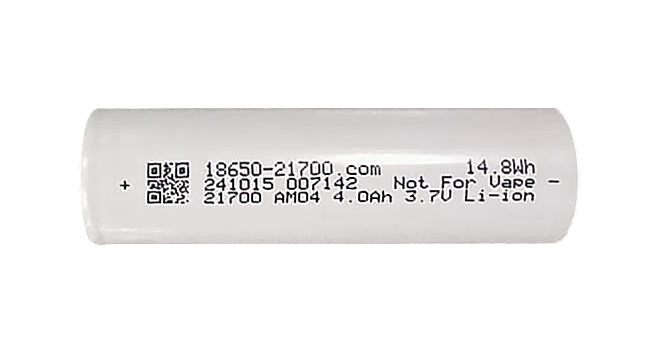

The AM04 21700 is a cutting-edge tabless Li-ion cell engineered for peak performance and long-term durability.

Boasting a remarkable 160A peak discharge capability, the AM04 delivers exceptional energy with minimal voltage sag.

It maintains a continuous discharge of up to 45A, while at lower discharge rates it has a long lifespan of 1,500 cycles to 80% capacity.


View full details

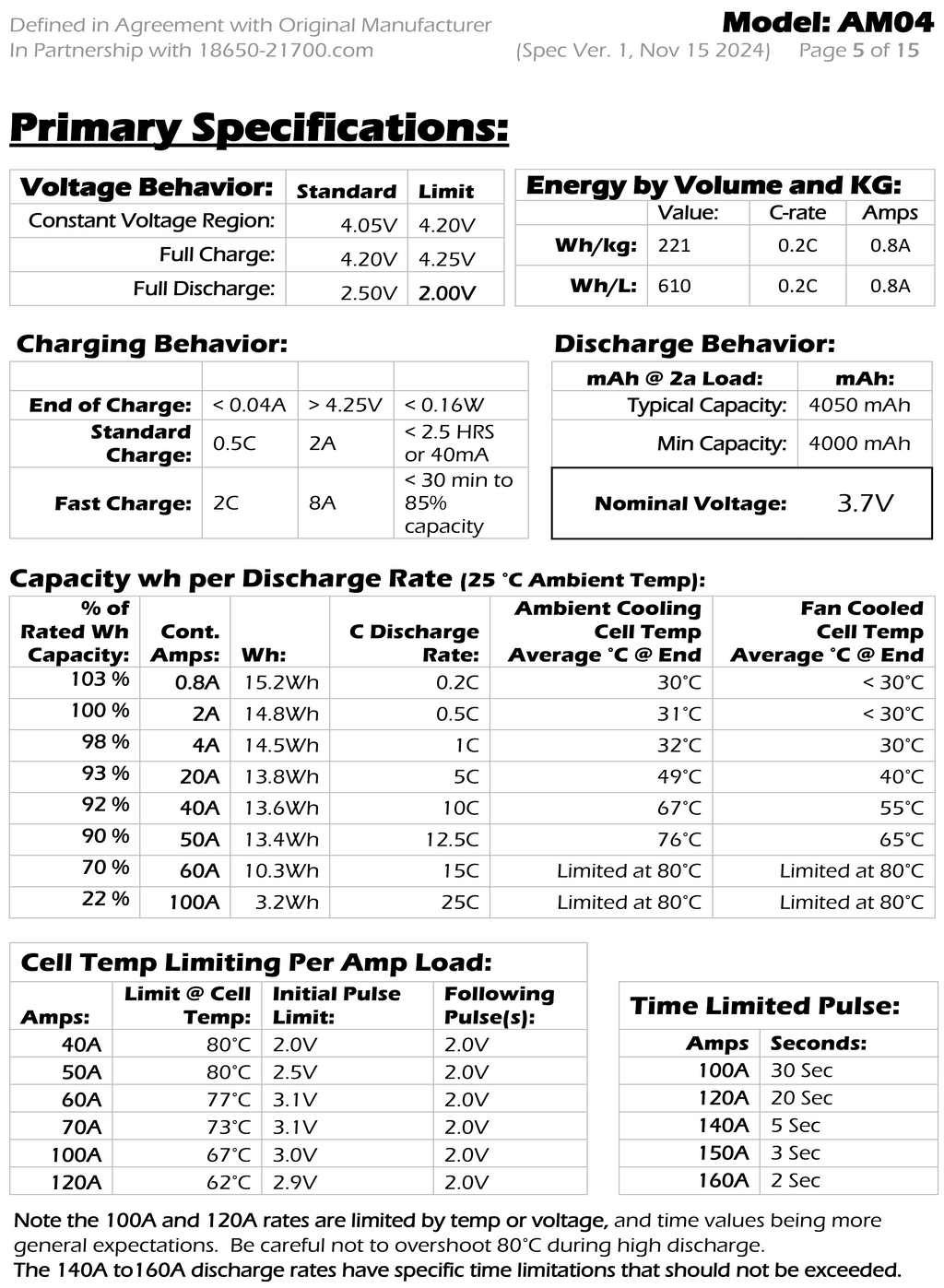

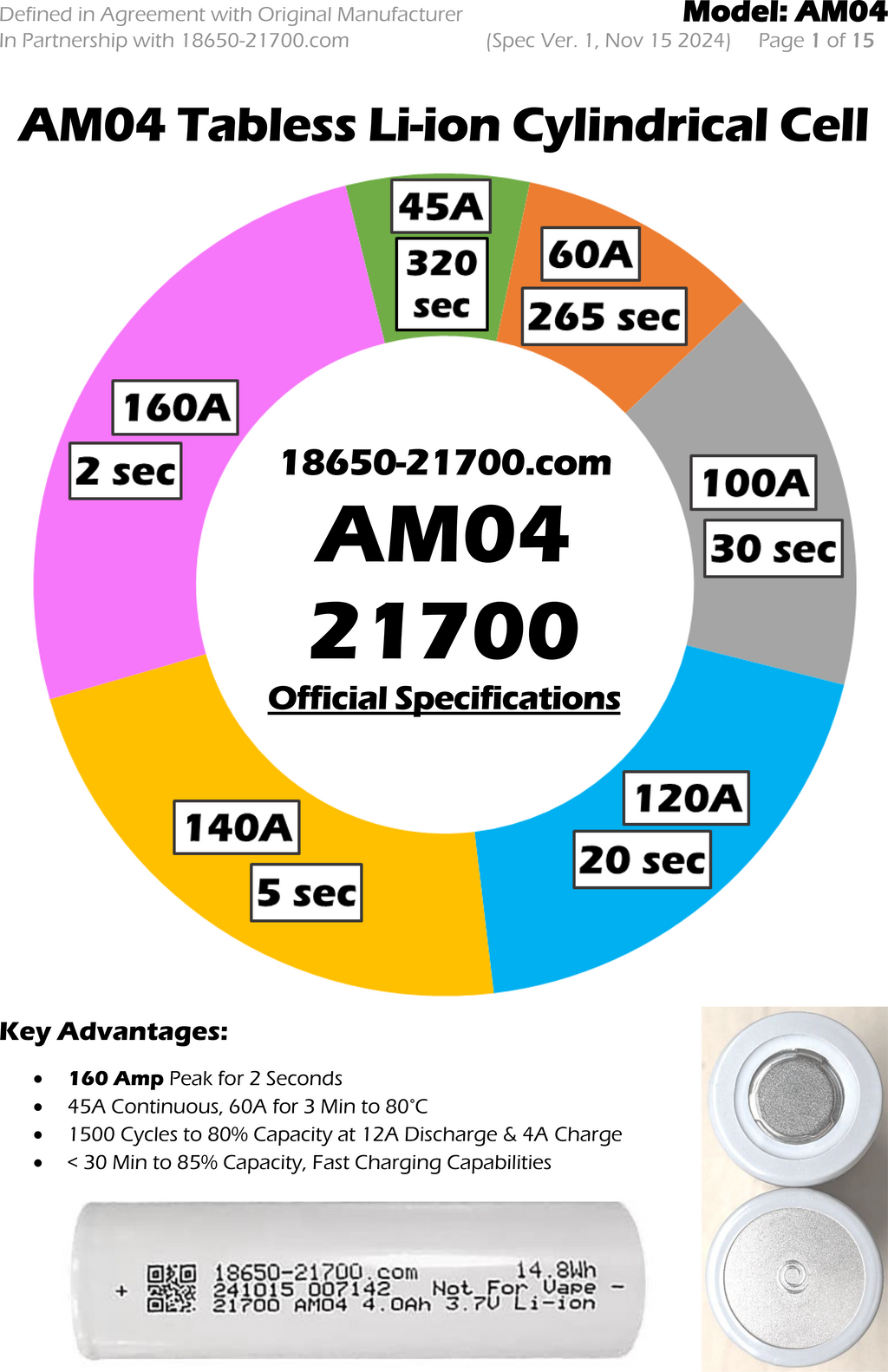

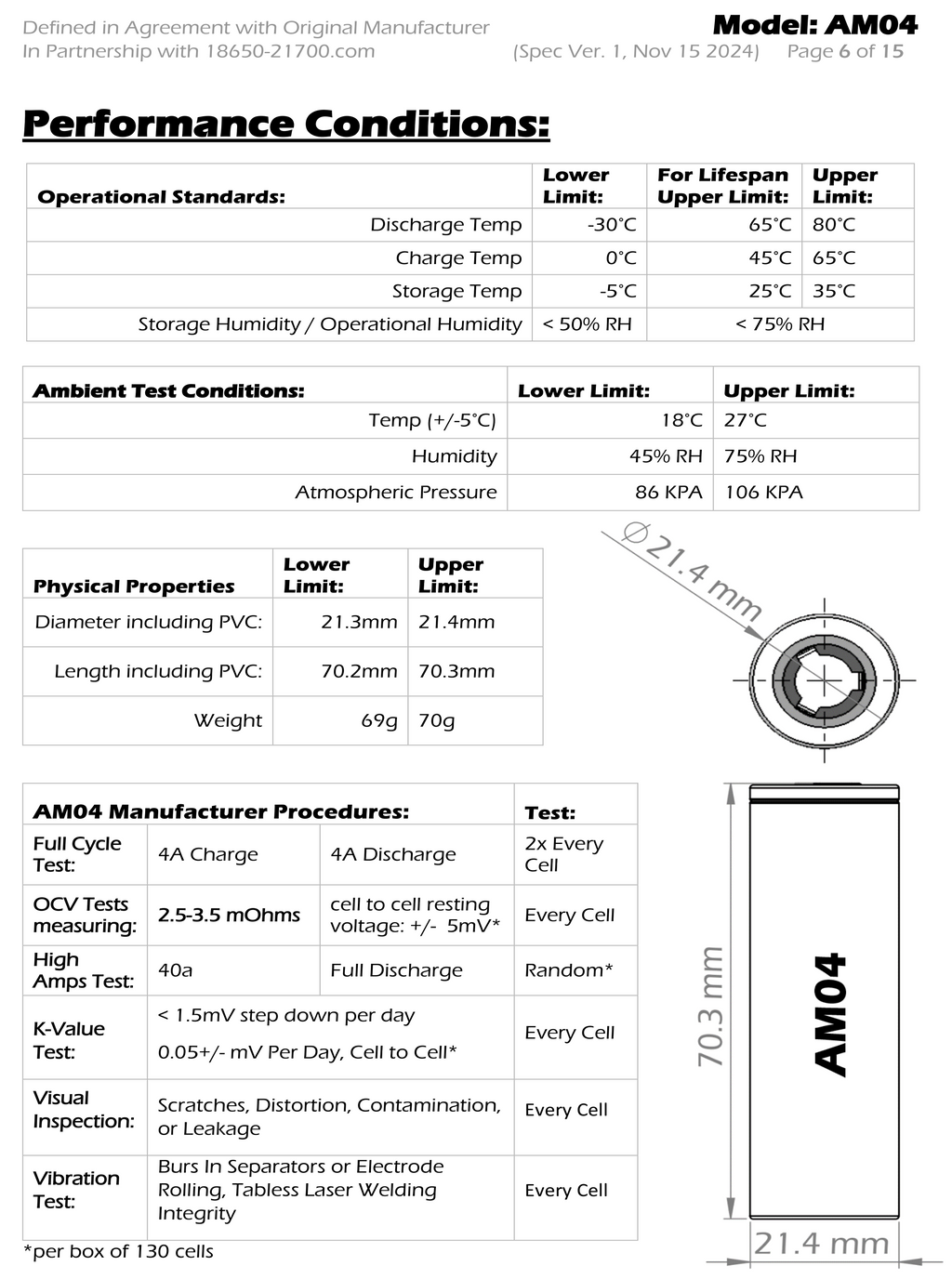

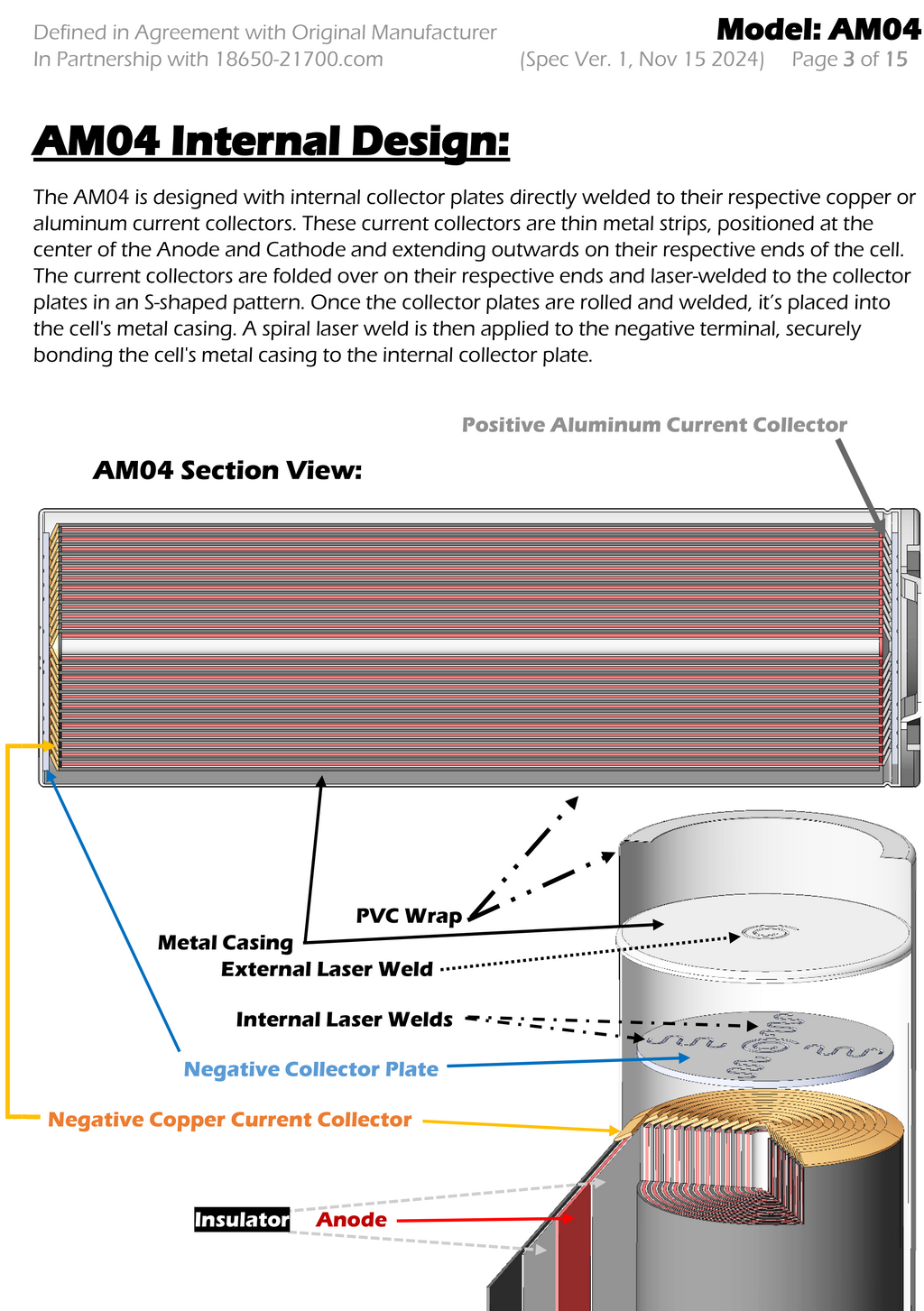

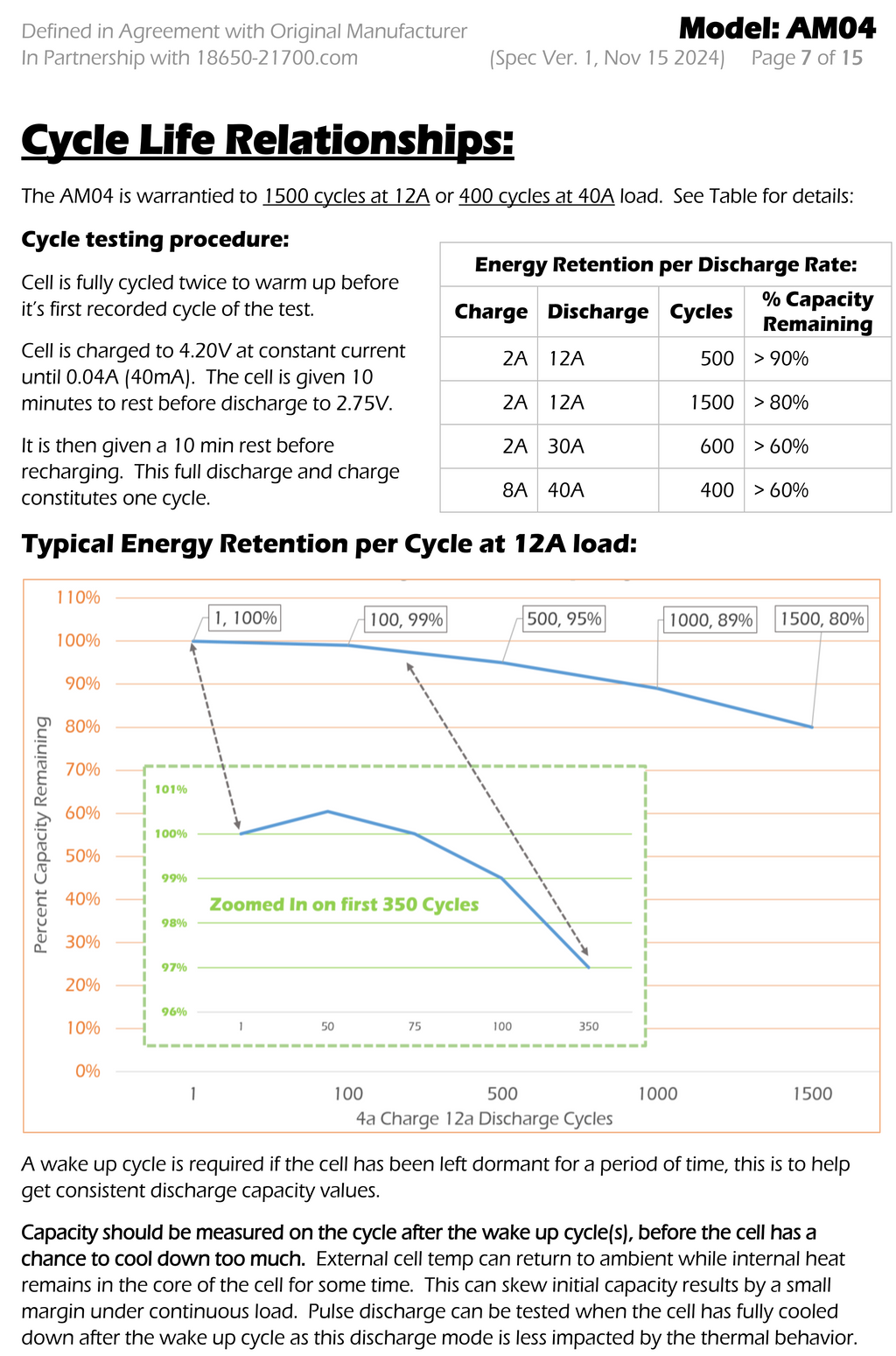

AM04 Spec Sheet

Download all 15 pages

Download PDF

Internal Temp Sense

  • Do Not Attempt

    A live AM04 cell was drilled opened very carefully

  • Temp Sensor

    Soldered to enamel coated wire

  • Silicone Seal

    on temp sense wires

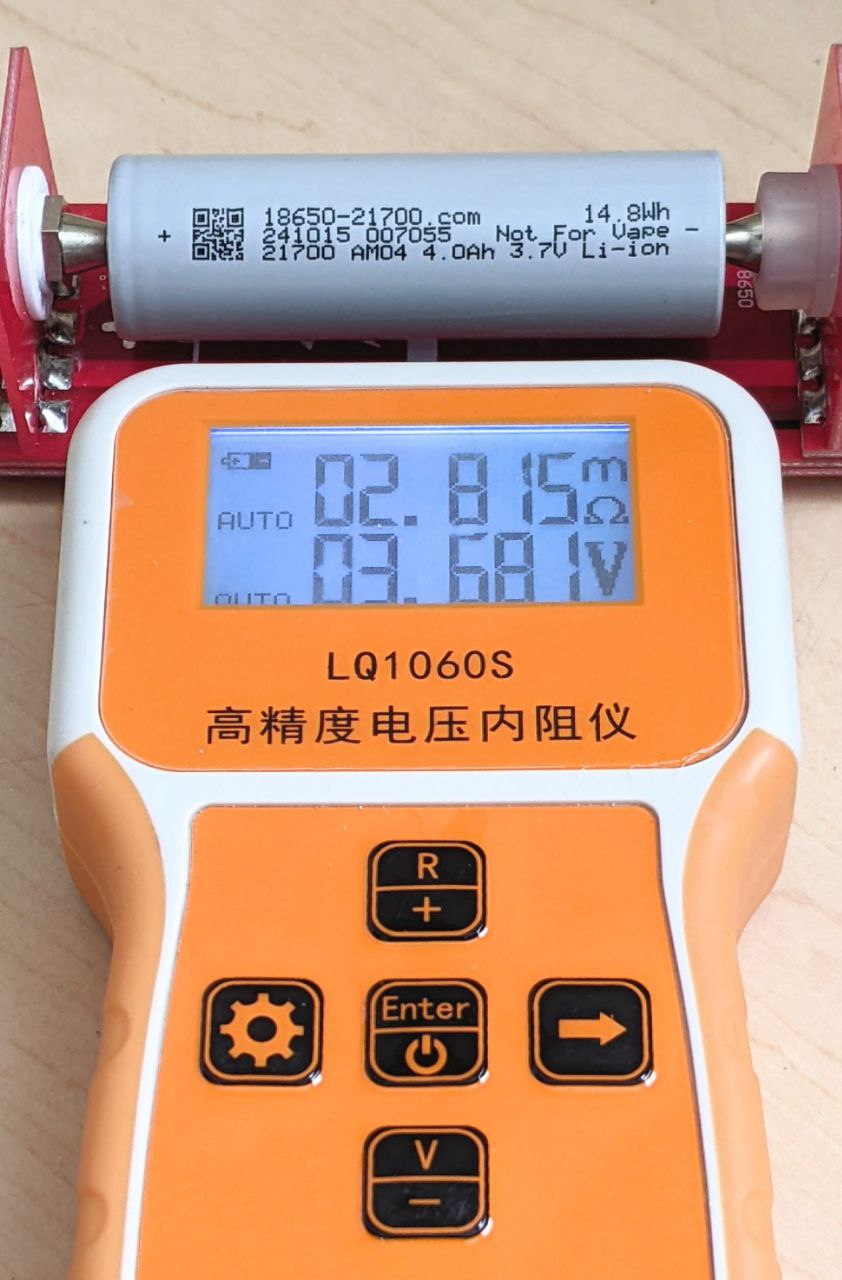

  • After Installing

    The internal temp senseor into the positive terminal, Doing an IR test

  • Wire routing

    For Internal Temp Sense through the positive contact

  • Cell Mounted

    In compression fixture for strong electrical contact

Same Energy, Enhanced Performance.

The AM04 Is NOW.

AM04 VS JP40:

AM04 offers cooler operating temperatures under high loads.

AM04 has higher discharge rates with equivalent energy delivery.

AM04 extended operating range (down to 2V per cell).

More Cells:
